Safety Belt Shoulder Height Adjuster - 4-Door, SuperCab: Notes

WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH shown, RH similar.

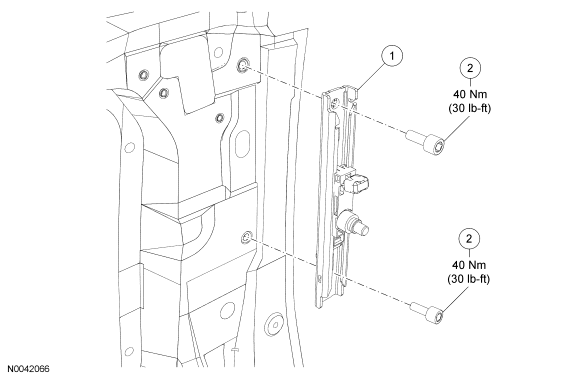

Fig 1: Safety Belt Shoulder Height Adjuster - 4-Door, SuperCab With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	602B82	Safety belt shoulder height adjuster
2	-	Safety belt shoulder height adjuster bolts (part of 602B82) (2 required)
