Safety Belt Buckle and Pretensioner - 40 Percent: Notes

WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools

Illustration	Tool Name	Tool Number
	Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool

NOTE: Passenger seat shown, driver seat similar.

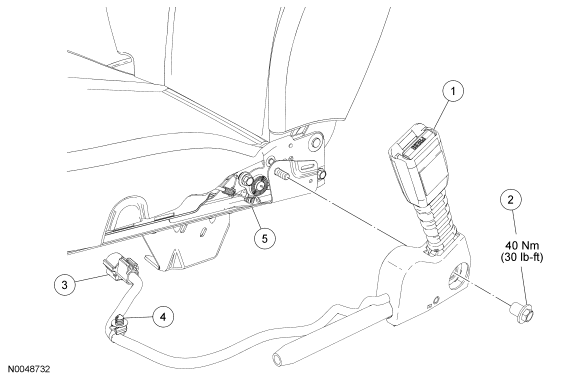

Fig 1: Safety Belt Buckle and Pretensioner - 40 Percent With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	61202	Safety belt buckle and pretensioner
2	000A25	Safety belt buckle and pretensioner nut
3	-	Electrical connector (part of 61202)
4	-	Pin-type retainer
5	-	Front passenger seat
