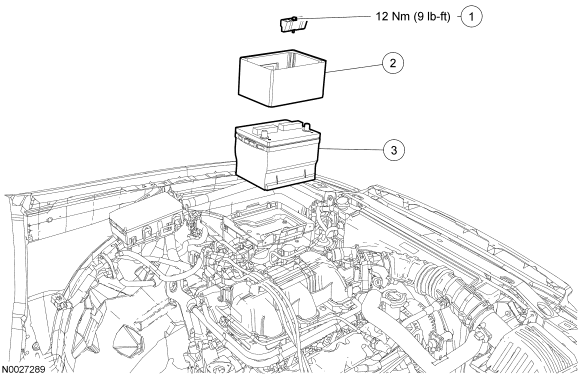

Battery and Battery Tray - Exploded View
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
10718 |
Battery hold down bolt and clamp |
| 2 |
10A687 |
Battery heat shield |
| 3 |
10655 |
Battery |
- For additional information, refer to the procedures in this article.
