Battery Cables - 4.0L: Notes
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

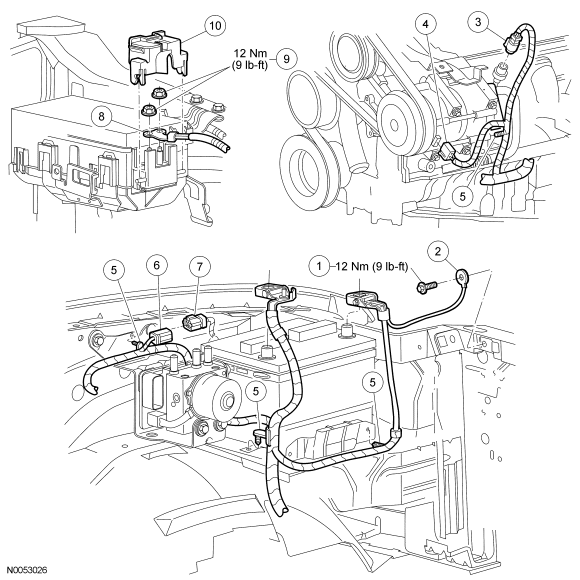

| Item | Part Number | Description |
|---|---|---|
| 1 | W705661- S437M | Battery cable body ground terminal bolt |
| 2 | - | Battery cable body ground terminal |
| 3 | - | Air conditioning (A/C) cut-off switch connector (if equipped) |
| 4 | - | A/C compressor electrical connector (if equipped) |
| 5 | - | Battery cable locators |
| 6 | - | Connector (to 14290) |
| 7 | - | Connector (14290) |
| 8 | - | BJB terminal |
| 9 | W706199- S437M | BJB terminal nuts (2 required) |
| 10 | 14A003 | Battery junction box (BJB) cover |

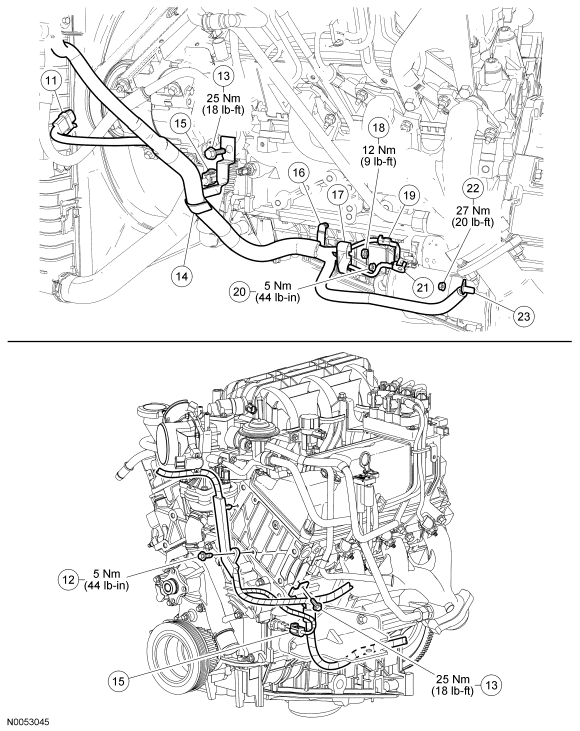

| Item | Part Number | Description |
|---|---|---|
| 11 | - | Air conditioning (A/C) compressor electrical connector |
| 12 | W506411-S440 | Battery cable shield assembly bolt |
| 13 | W506431-S439 | Battery cable engine bracket bolt |
| 14 | - | Battery cable engine bracket |
| 15 | - | Oil pressure switch connector |
| 16 | - | Battery cable locator |
| 17 | 11N087 | Starter solenoid terminal cover |
| 18 | W706414-S413 | Battery cable starter solenoid terminal nut |
| 19 | - | Battery cable starter solenoid terminal |
| 20 | N805320-S100 | Battery cable starter solenoid wire terminal nut |
| 21 | - | Battery cable starter solenoid wire terminal |
| 22 | N802001-S437 | Battery cable engine ground terminal nut |
| 23 | - | Battery cable engine ground terminal |
| Item | Part Number | Description |
|---|---|---|

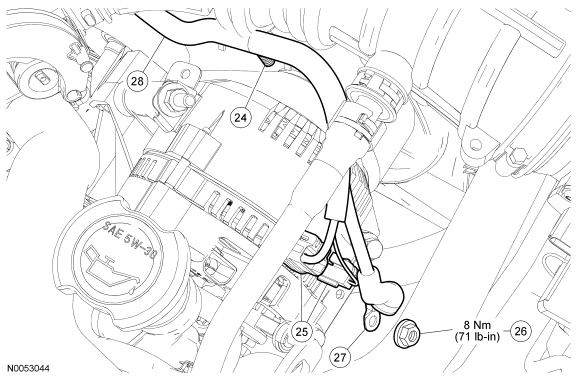

| 24 | - | Battery cable locator (part of 14300) |
| 25 | - | Generator electrical connectors (2 required) (part of 14300) |
| 26 | W705790-S901 | Battery cable generator B+ terminal nut |
| 27 | - | Battery cable generator B+ terminal (part of 14300) |
| 28 | 14300 | Battery cables |
