Battery Cables - 3.0L: Notes
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | W705661- S437M | Battery cable body ground terminal bolt |
| 2 | - | Battery cable body ground terminal |
| 3 | - | Air conditioning (A/C) cut-off switch connector (if equipped) |
| 4 | - | Battery cable locators (3 required) |
| 5 | 14A003 | Battery junction box (BJB) cover |
| 6 | W706199- S437M | BJB terminal nuts (2 required) |
| 7 | - | BJB terminal |
| 8 | - | Connector (to 14290) |
| 9 | - | Connector (14290) |

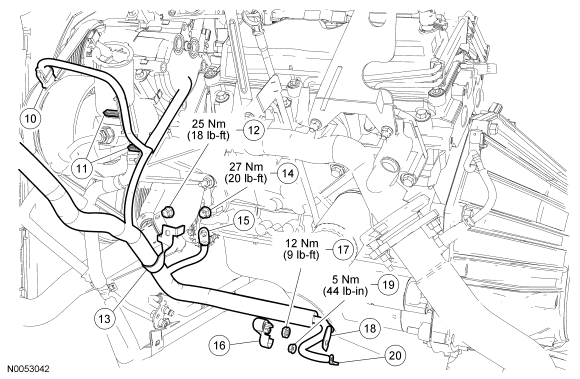

| Item | Part Number | Description |
|---|---|---|
| 10 | - | Air conditioning (A/C) compressor electrical connector |
| 11 | - | Battery cable locators (2 required) |
| 12 | W520112-S440 | Battery cable engine bracket nut |
| 13 | - | Battery cable engine bracket |
| 14 | N802001-S437 | Battery cable engine ground terminal nut |
| 15 | - | Battery cable engine ground terminal |
| 16 | 11N087 | Starter solenoid terminal cover |
| 17 | W706414-S413 | Battery cable starter solenoid terminal nut |
| 18 | - | Battery cable starter solenoid terminal |
| 19 | N805320-S100 | Battery cable starter solenoid wire terminal nut |
| 20 | - | Battery cable starter solenoid wire terminal |

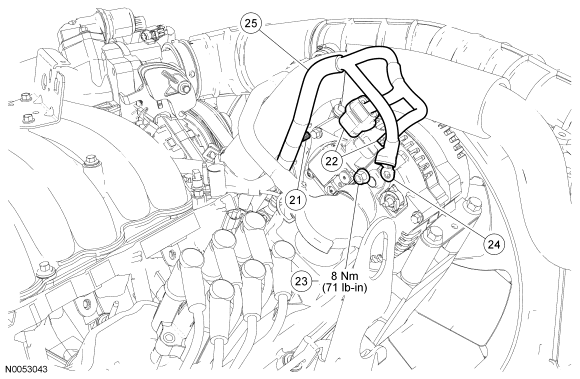

| Item | Part Number | Description |
|---|---|---|
| 21 | - | Battery cable locator |
| 22 | - | Generator electrical connectors (2 required) |
| 23 | W705790-S901 | Battery cable generator B+ terminal nut |
| 24 | - | Battery cable generator B+ terminal |
| 25 | 14300 | Battery cables |
