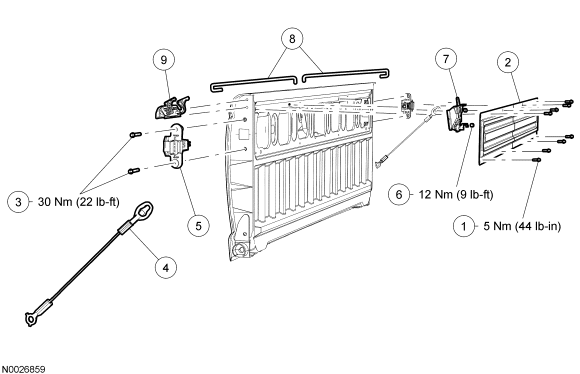

Tailgate Handle, Lock and Latches - Exploded View
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | N806149-S439 | Tailgate access cover screws (8 required) |
| 2 | 9943121 | Tailgate access cover |
| 3 | W706729 | Tailgate latch bolts (2 required) |
| 4 | 9943052/ 9943053 | Tailgate support cables (RH/LH) |
| 5 | 9943150/ 9943151 | Tailgate latch (RH/LH) |
| 6 | N620480-S438 | Tailgate latch remote control nuts (2 required) |
| 7 | 9943170 | Tailgate latch remote control |
| 8 | 99431A78 | Tailgate latch actuating rods (2 required) |
| 9 | 9943400 | Tailgate release handle |
- For additional information, refer to the appropriate procedures.
