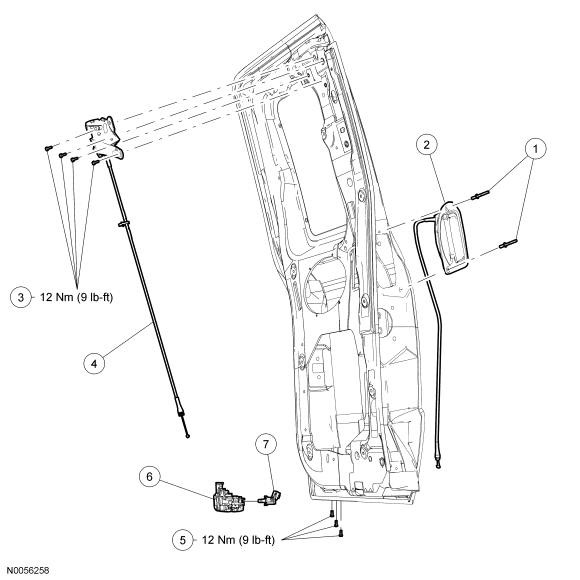

Rear Door Handles, Locks and Latches - Exploded View
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | W525170 | Exterior rear door handle rivets (2 required) |
| 2 | 136604/ 136605 | Exterior rear door handle (RH/LH) |
| 3 | W705830-S901 | Upper rear door latch screws (4 required) |
| 4 | 13264A26/ 13264A27 | Upper rear door latch (RH/LH) |
| 5 | W705830-S901 | Lower rear door latch screws (3 required) |
| 6 | 1326412/ 1326413 | Lower rear door latch (RH/LH) |
| 7 | 14018 | Door ajar switch |
- For additional information, refer to the appropriate procedures.
