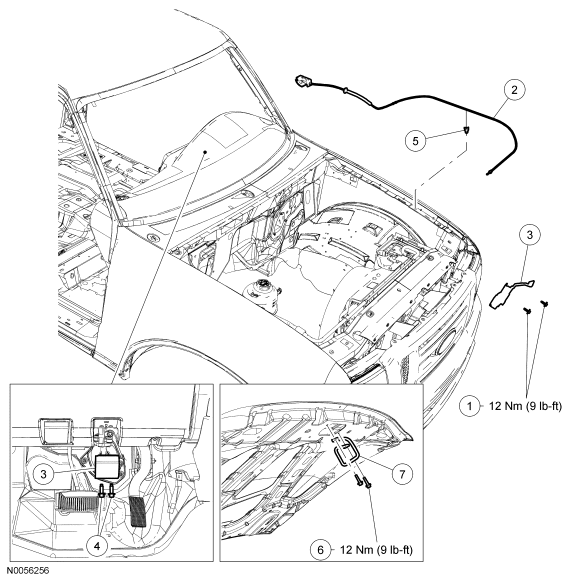

Hood Latch and Components - Exploded View
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | N808727-S307 | Hood latch bolts (2 required) |
| 2 | 16916 | Hood latch release handle and cable |
| 3 | 16700 | Hood latch release handle |
| 4 | N804693-S424 | Hood latch release handle bolts (2 required) |
| 5 | 386132 | Hood latch release handle cable clip |
| 6 | - | Hood latch striker bolts (2 required) |
| 7 | - | Hood latch striker |
- For additional information, refer to the appropriate procedures.
