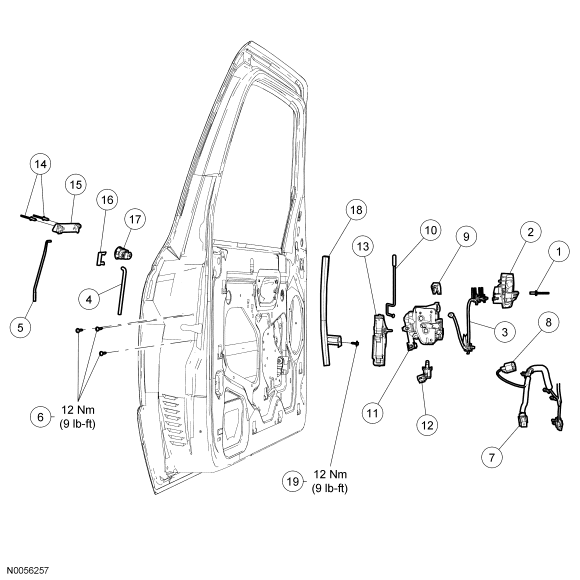

Front Door Handles, Locks and Latches - Exploded View
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | W525172 | Interior door handle rivet |
| 2 | 1022404 | Interior door handle |
| 3 | 10221A00/ 10221A01 | Interior door handle actuating cable (RH/LH) |
| 4 | 1022134/ 1022135 | Door lock cylinder actuating rod (RH/LH) |
| 5 | 1022152/ 1022153 | Exterior door handle actuating rod (RH/LH) |
| 6 | W705830-S901 | Front door latch screws (3 required) |
| 7 | - | Door ajar switch electrical connector (part of 14630/14631) (RH/LH) |
| 8 | - | Door lock actuator electrical connector (part of 14630/14631) (RH/LH) |
| 9 | 15221A06/ 15221A07 | Front door latch cable watershield (RH/LH) |
| 10 | 1021852/ 1021853 | Door latch push button rod (RH/LH) |
| 11 | 1021812/ 1021813 | Front door latch (RH/LH) |
| 12 | 14018/ 10B997 | Front door ajar switch (RH/LH) |
| 13 | 218B20/ 218B21 | Door lock actuator (RH/LH) |
| 14 | W707874 | Exterior front door handle rivets (2 required) |
| 15 | 1022404 | Exterior front door handle |
| 16 | 1022023 | Door lock cylinder retainer |
| 17 | 7821990 | Front door lock cylinder |
| 18 | 222A00 | Door glass channel |
| 19 | N6066676-S | Door glass channel bolt |
- For additional information, refer to the appropriate procedures.
