Glove Compartment
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

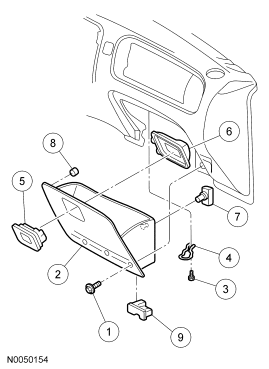

| Item | Part Number | Description |
|---|---|---|
| 1 | 38574 | Glove compartment hinge screw (2 required) |
| 2 | 06072 | Glove compartment door |
| 3 | - | Glove compartment striker screw |
| 4 | 06064 | Glove compartment striker |
| 5 | 06072 | Glove compartment lock |
| 6 | 061A40 | Glove compartment inside cover |
| 7 | 06115 | Glove compartment bumper |
| 8 | - | Glove compartment stud |
| 9 | 15A563 | Glove compartment lamp |
- Open the glove compartment.
- Depress the 2 side release tabs and allow the glove compartment to open completely.
- Remove the 2 glove compartment screws and the glove compartment.
- To install, reverse the removal procedure.
