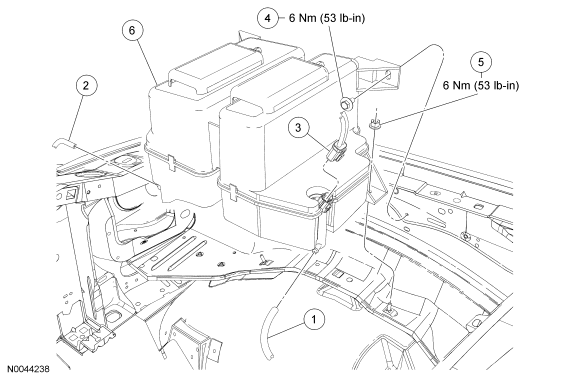

Washer Pump and Reservoir - 3.0L (2V) and 4.0L SOHC: Notes
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
17K605 |
Windshield washer hose |
| 2 |
8N023 |
Coolant hose |
| 3 |
14290 |
Electrical connector |
| 4 |
W611102 |
Reservoir mounting bolt (2 required) |
| 5 |
N806385 |
Reservoir mounting nut (2 required) |
| 6 |
17618 |
Coolant and windshield reservoir assembly |
