Passenger Air Bag Deactivation (PAD) Indicator
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

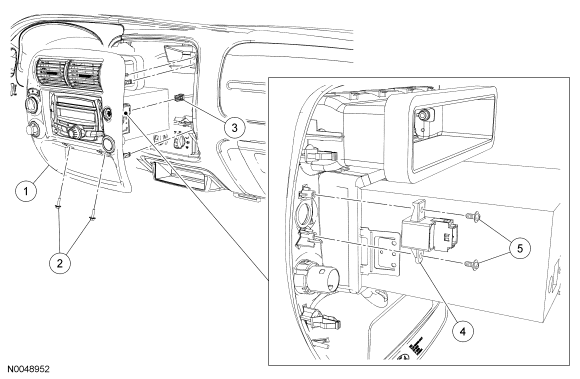

| Item | Part Number | Description |
|---|---|---|
| 1 | 04302 | Instrument panel (I/P) center finish panel |
| 2 | W707628 | I/P center finish panel screws (2 required) |
| 3 | - | Passenger air bag deactivation (PAD) indicator electrical connector (part of 14401) |
| 4 | 0A936A | PAD indicator |
| 5 | W505942 | PAD indicator screws (2 required) |
NOTE:
The air bag warning indicator illuminates when the restraints control module (RCM) fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.
NOTE:
Repair is made by installing a new part only. If the new part does not correct the condition, install the original part and carry out the diagnostic procedure again.
NOTE:
The SRS must be fully operational and free of faults before releasing the vehicle to the customer.
- Depower the SRS. For additional information, refer to Supplemental Restraint System (SRS) Depowering and Repowering in the General Procedures portion of this section.
- Remove the 2 instrument panel (I/P) center finish panel screws.
- Pull out to detach the 4 retaining clips and partially remove the I/P center trim panel.
- Disconnect the passenger air bag deactivation (PAD) indicator electrical connector.
- Remove the 2 screws from the PAD indicator and remove it from the I/P center finish panel.
- To install, reverse the removal procedure.
- Repower the SRS. For additional information, refer to Supplemental Restraint System (SRS) Depowering and Repowering in the General Procedures portion of this section.
