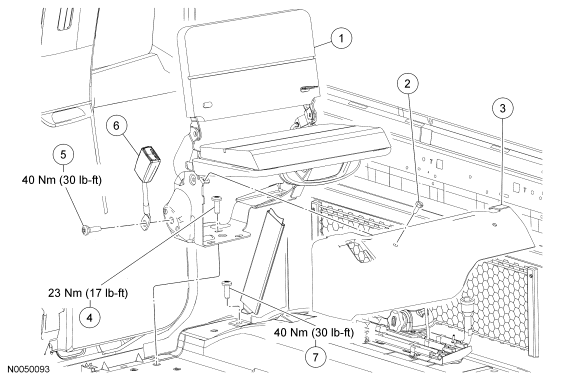

Seat - Rear, 2-Door, SuperCab: Notes
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
1360026 |
Seat assembly |
| 2 |
- |
Pin-type retainer (2 required) |
| 3 |
- |
Lower rear seat trim panel |
| 4 |
W701834 |
Seat-to-floor bolt (5 required) |
| 5 |
- |
Safety belt buckle bolt (part of 613B84) |
| 6 |
613B84 |
Safety belt buckle |
| 7 |
- |
Safety belt bolt |
