Seat - Front: Notes
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For torque specifications and torque sequence, refer to the procedure steps.

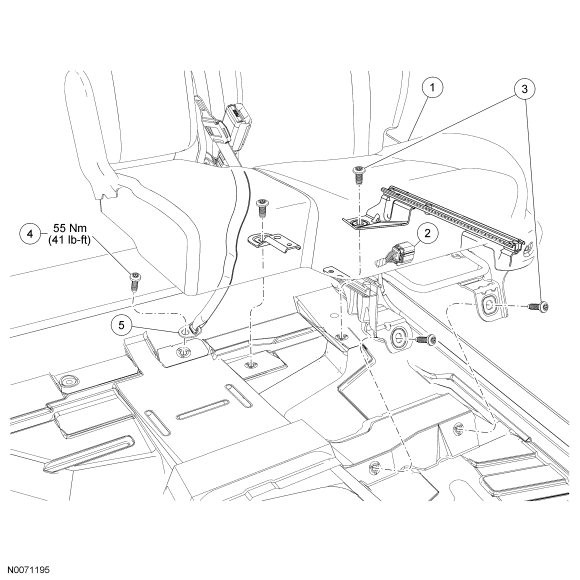

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Driver seat |
| 2 | - | Electrical connector (part of 61203) |
| 3 | W706637 | Seat-to-floor bolts (4 required) |
| 4 | - | Front center safety belt bolt (part of 611B60) |
| 5 | 611B60 | Front center safety belt |
NOTE:
Driver seat shown, passenger seat similar.
NOTE:
For torque specifications and torque sequence, refer to the procedure steps.

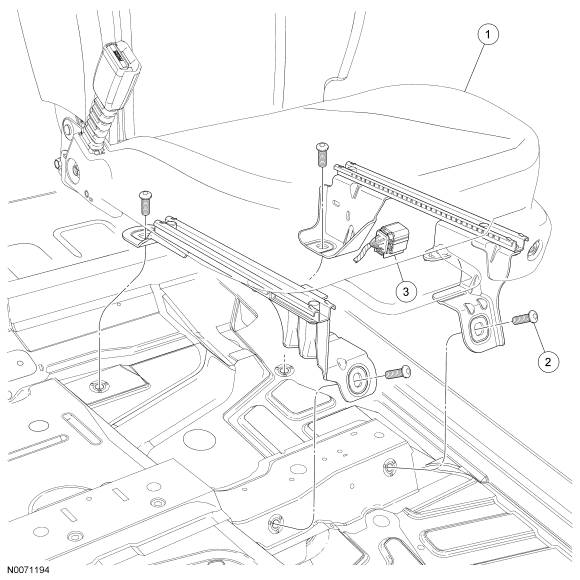

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Driver seat |
| 2 | W706637 | Seat-to-floor bolt (4 required) |
| 3 | - | Electrical connector (part of 61203) |
