Seat Cushion - Front, Bucket and 40 Percent: Notes

WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools

Illustration	Tool Name	Tool Number
	Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS)	software with appropriate hardware, or equivalent scan tool

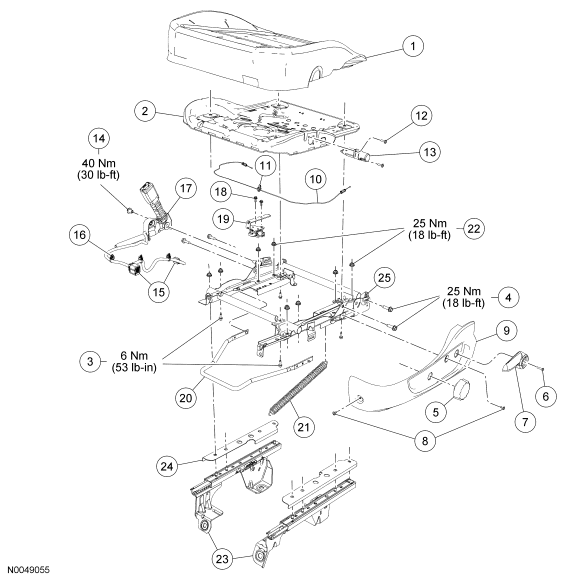

Fig 1: Seat Cushion, Driver With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	62900/632A22	Cushion trim cover/foam pad
2	63100	Cushion frame
3	60108	Seat track-to-cushion frame bolts (4 required)
4	60108	Backrest-to-cushion bolts (4 required)
5	61198	Lumbar adjustment knob
6	55927	Recliner handle screw
7	61736	Recliner handle
8	000A25	Side shield screws (2 required)
9	62186	Cushion side shield
10	624A54	Backrest latch release cable
11	-	Pin-type retainer
12	000A25	Lumbar actuator screw (2 required)
13	610C00	Lumbar actuator
14	000A25	Safety belt buckle pretensioner nut
15	-	Electrical connectors (part of 61203)
16	-	Pin-type retainer (3 required)
17	61203	Safety belt buckle pretensioner
18	-	Seat position sensor screw (2 required)
19	14B416	Seat track position sensor
20	61736	Seat track adjustment handle
21	61828	Seat track assist spring
22	W520413	Rail-to-seat track nuts (8 required)
23	61704/61705	Seat track rails
24	617A46	Seat track reinforcement (2 required)
25	620B20	Seat track

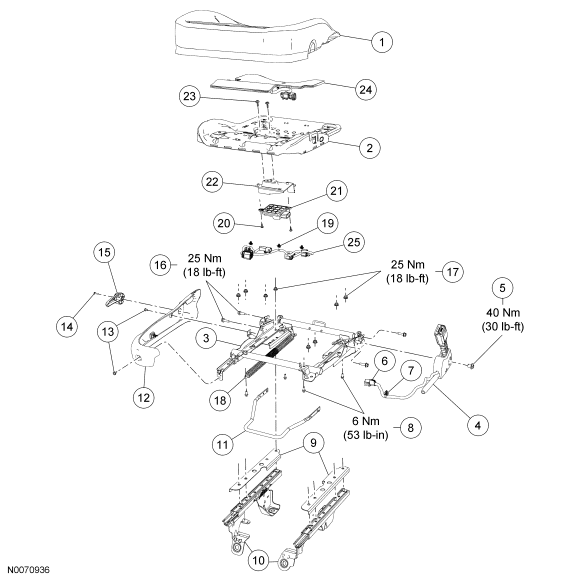

Fig 2: Seat Cushion, Front Passenger With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	62900/603B02	Cushion trim cover/foam pad
2	63100	Cushion frame
3	613B20	Seat track
4	61202	Safety belt buckle pretensioner
5	000A25	Safety belt buckle pretensioner nut
6	-	Electrical connector (part of 61202)
7	-	Pin-type retainer
8	60108	Seat track-to-cushion frame bolts (4 required)
9	617A46	Seat track reinforcements
10	61704/61705	Seat track rails
11	61736	Seat track adjustment handle
12	62186	Cushion side shield
13	000A25	Side shield screws (2 required)
14	55927	Recliner handle screw
15	61736	Recliner handle
16	60108	Backrest-to-cushion bolts (4 required)
17	W520413	Rail-to-seat track nuts (8 required)
18	61828	Seat track assist spring
19	-	Pin-type retainer (3 required)
20	-	Screw (2 required)
21	-	Occupant classification system module (OCSM) (part of 603B02)
22	-	OCSM bracket
23	-	Screw (2 required)
24	-	OCS (bladder, hose with pressure sensor, OCSM and seat wiring harness) (part of 603B02)
25	14C719	Wiring harness
