Seat Backrest - Front, Bucket and 40 Percent: Notes
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) | software with appropriate hardware, or equivalent scan tool |
NOTE:

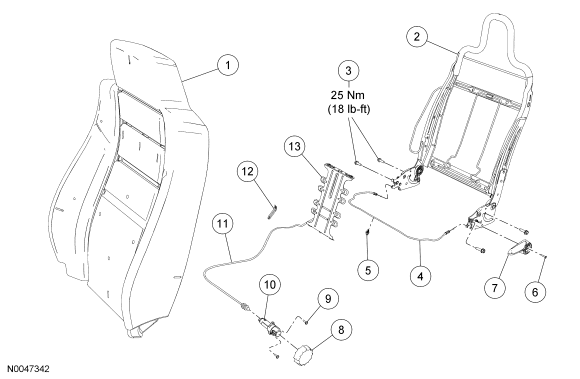

Driver backrest shown, passenger backrest similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 64416/64810 | Backrest trim cover/foam pad |
| 2 | 61018 | Backrest frame |
| 3 | 60108 | Backrest-to-cushion bolts (4 required) |
| 4 | 624A54 | Backrest latch release cable |
| 5 | - | Pin-type retainer |
| 6 | 56904 | Recliner handle screw |
| 7 | 610A77 | Recliner handle |
| 8 | 61198 | Lumber adjust knob, if equipped |
| 9 | 000A25 | Lumbar actuator screw (2 required), if equipped |
| 10 | 610C00 | Lumbar actuator, if equipped |
| 11 | - | Lumbar actuator cable (part of 62222), if equipped |
| 12 | - | Tie strap, if equipped |
| 13 | 62222 | Lumbar support, if equipped |
