Removal And Installation: Headliner: Notes
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

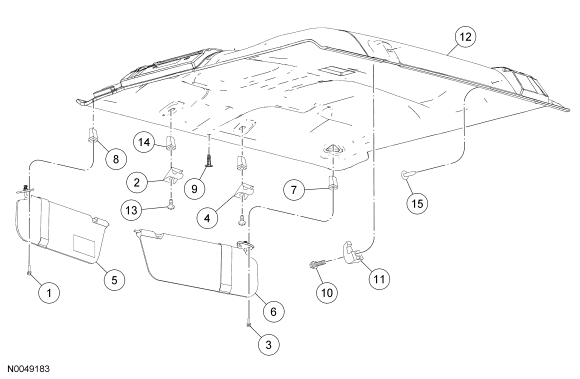

| Item | Part Number | Description |
|---|---|---|
| 1 | N610021-S58 | Sun visor screw (3 required) |
| 2 | 04132 | Sun visor retainer LH |
| 3 | N610021-S58 | Sun visor screw (3 required) |
| 4 | 04132 | Sun visor retainer RH |
| 5 | 04104 | Sun visor LH |
| 6 | 04104 | Sun visor RH |
| 7 | W711612-S300 | Sun visor nut |
| 8 | W711612-S300 | Sun visor nut |
| 9 | 5802354 | Headliner retainer |
| 10 | N806996-S424 | Coat hook screw |
| 11 | 29024 | Coat hook |
| 12 | 51944 | Headliner |
| 13 | N610021-S300 | Sun visor retainer screw (2 required) |
| 14 | W711612-S300 | Sun visor retainer nut (2 required) |
| 15 | 5802354 | Headliner retainer |
