Door Trim Panel - Rear

WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools

Illustration	Tool Name	Tool Number
	Safety Belt Bolt Bit	T77L-2100-A

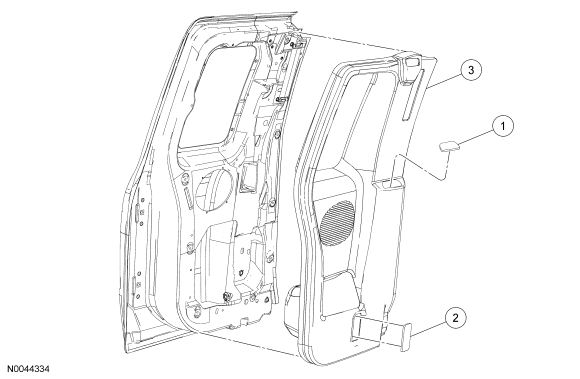

Fig 1: Exploded View Of Door Trim Panel - Rear

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	601B30	Rear door trim panel seat belt bezel
2	274A30	Rear door trim panel cover
3	27406	Rear door trim panel

NOTE: If the safety belt guide cover is damaged or if it does not remain closed, install a new cover.

Fig 2: Locating Front Safety Belt Guide Cover

Courtesy of FORD MOTOR CO.

Remove the front safety belt guide cover.
- Release the retaining tabs and remove the cover.
Remove the bolt and safety belt guide.

Fig 3: Locating Safety Belt Guide Bolt
Courtesy of FORD MOTOR CO.
- Use the Safety Belt Bolt Bit to remove the bolt.
  - To install, tighten to 40 N.m (30 lb-ft).
- Remove the safety belt guide.
Remove the safety belt anchor.

Fig 4: Locating Safety Belt Anchor Bolt
Courtesy of FORD MOTOR CO.
- Use the Safety Belt Bolt Bit to remove the bolt.
  - To install, tighten to 40 N.m (30 lb-ft).
Remove the door trim panel.

Fig 5: Identifying Door Trim Panel
Courtesy of FORD MOTOR CO.
- Separate the trim panel from the door.
To install, reverse the removal procedure.
