Door Trim Panel - Front

WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

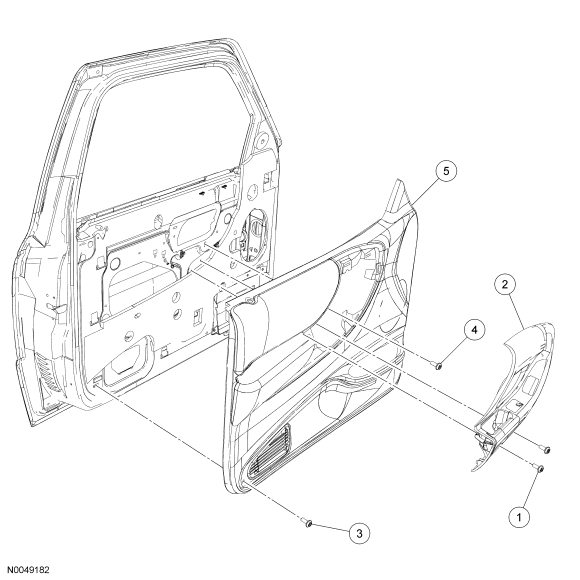

Fig 1: Exploded View Of Door Trim Panel - Front

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	N804992-S424	Front door trim panel screw (2 required)
2	23712	Front door trim finish panel
3	N804992-S424	Front door trim panel screw
4	W505004-S424	Front door trim panel mounting screw
5	23942	Front door trim panel

Remove the front door trim finish panel screws.

Fig 2: Locating Front Door Trim Finish Panel Screws
Courtesy of FORD MOTOR CO.
Position the front door trim finish panel aside.

Fig 3: Locating Front Door Trim Finish Panel
Courtesy of FORD MOTOR CO.
- Separate the front door trim finish panel from the front door trim panel.
Disconnect the power mirror and power door lock electrical connectors, if equipped.

Fig 4: Locating Power Mirror & Power Door Lock Electrical Connectors
Courtesy of FORD MOTOR CO.
Remove the power window switch screws, if equipped.

Fig 5: Locating Power Window Switch Screws
Courtesy of FORD MOTOR CO.
Remove the front door trim finish panel.
Remove the front door trim panel screws.

Fig 6: Locating Front Door Trim Panel Screws
Courtesy of FORD MOTOR CO.
Remove the front door trim panel.

Fig 7: Locating Front Door Trim Panel
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
