Bumper - Exploded View, Rear

WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

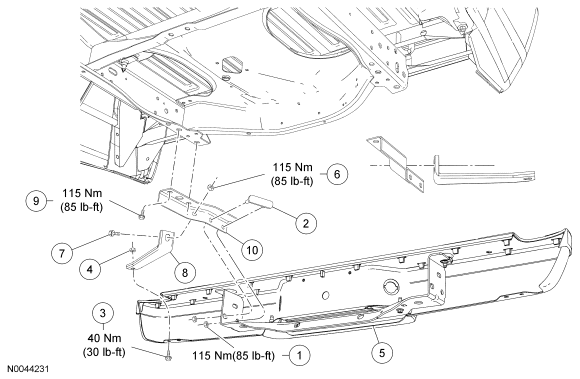

Fig 1: Exploded View Of Rear Bumper With Torque Specifications (1 Of 2)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	N620484	Bumper beam-to-inner bumper bracket nut (4 required)
2	N807717	Retainer and bolts assembly (2 required)
3	W710222	Bumper beam-to-outer bumper bracket bolt (2 required)
4	N621942	Bumper beam-to-outer bumper bracket nut (2 required)
5	17906	Rear bumper
6	N621942	Outer bumper bracket-to-inner bumper bracket nut (2 required)
7	N605946	Outer bumper bracket-to-inner bumper bracket bolt (2 required)
8	17796 LH/ 17795 RH	Outer bumper bracket (2 required)
9	N605946	Inner bumper bracket-to-frame bolt (4 required)
10	17788 LH/ 17787 RH	Inner bumper bracket (2 required)

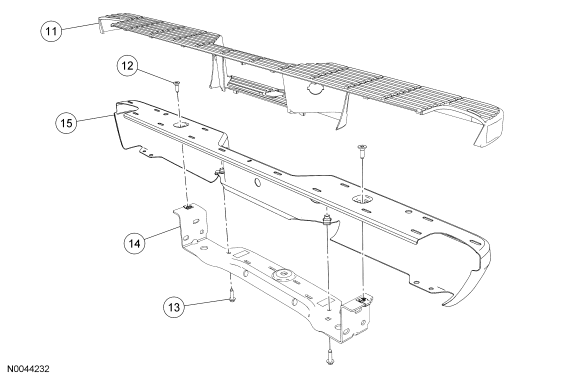

Fig 2: Exploded View Of Rear Bumper (2 Of 2)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
11	17B807	Bumper beam step cover
12	N811645	Hitch plate upper bolts (2 required)
13	N606703	Hitch plate lower bolts (2 required)
14	N606689	Hitch plate
15	17757	Rear bumper

For additional information, refer to the procedures in this article.
