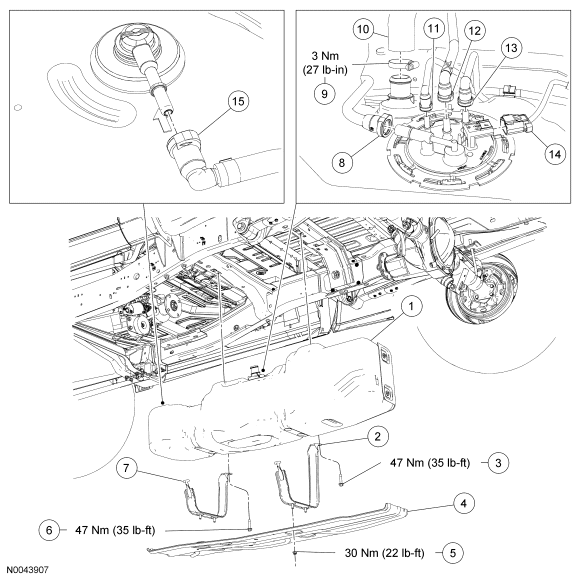

Fuel Tank and Filler Pipe - Exploded View
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 9002 | Fuel tank |
| 2 | 9057 | Rear fuel tank support strap |
| 3 | W506435 | Rear fuel tank support strap bolt |
| 4 | 9A147 | Fuel tank skid plate (if equipped) |
| 5 | W520112 | Fuel tank skid plate nut (if equipped) |
| 6 | W506435 | Front fuel tank support strap bolt |
| 7 | 9054 | Front fuel tank support strap |
| 8 | - | Rear fuel tank vapor tube and fuel tank pressure sensor-to-fuel pump quick connect coupling (part of 9G291) |
| 9 | - | Fuel tank filler pipe hose-to-fuel tank clamp (part of 9034) |
| 10 | - | Fuel tank filler pipe (part of 9034) |
| 11 | - | Fuel supply tube-to-fuel pump quick connect coupling (part of 9G291) |
| 12 | - | Fuel tank filler pipe vapor tube-to-fuel pump quick connect coupling (part of 9034) |
| 13 | - | Fuel return tube-to-fuel pump quick connect coupling (part of 9G291) |
| 14 | - | Fuel pump electrical connector |
| 15 | - | Rear fuel tank vapor tube and fuel tank pressure sensor-to-fuel tank vent valve quick connect coupling (part of 9G291) |

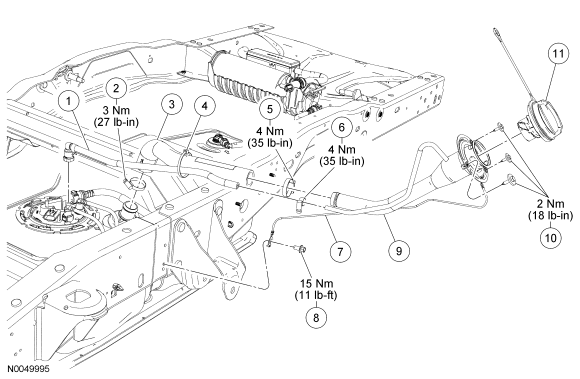

NOTE:
Vehicle body removed for clarity.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Fuel tank filler pipe vent tube (part of 9034) |
| 2 | - | Fuel tank filler pipe hose-to-fuel tank clamp (part of 9034) |
| 3 | - | Fuel tank filler pipe hose (part of 9034) |
| 4 | - | Fuel tank filler pipe tie strap (part of 9034) |
| 5 | - | Fuel tank filler pipe hose-to-fuel tank filler pipe clamp (part of 9034) |
| 6 | - | Fuel tank filler pipe vent tube-to-fuel tank filler pipe clamp (part of 9034) |
| 7 | - | Fuel tank filler pipe ground strap (part of 9034) |
| 8 | W505261 | Fuel tank filler pipe ground strap bolt |
| 9 | - | Fuel tank filler pipe (part of 9034) |
| 10 | W711589-S439 | Fuel tank filler pipe-to-body housing screws (3 required) |
| 11 | - | Fuel tank filler pipe cap (part of 9030) |
- For additional information, refer to the procedures in this article.
