Throttle Body: Notes
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

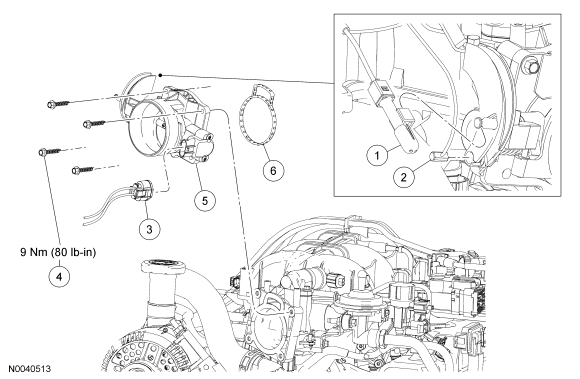

| Item |
Part Number |
Description |
| 1 |
9A825 |
Speed control cable |
| 2 |
9A758 |
Accelerator control cable |
| 3 |
- |
Throttle position (TP) sensor electrical connector (part of 12B637) |
| 4 |
W706824 |
Throttle body (TB) bolt (4 required) |
| 5 |
9E926 |
TB assembly |
| 6 |
9E936 |
TB gasket |
