Throttle Body

WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

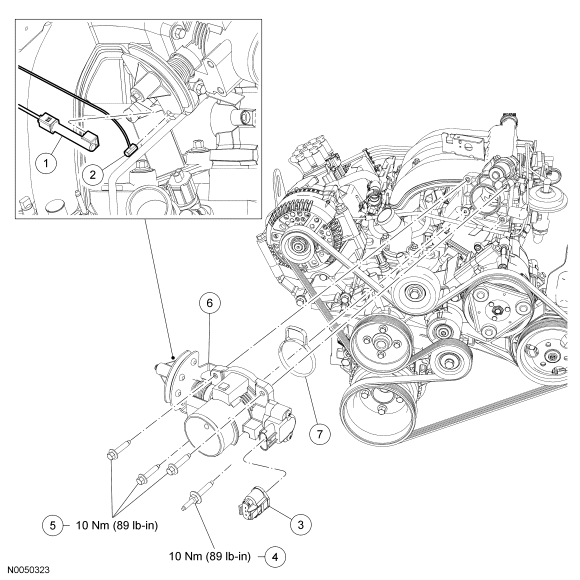

Fig 1: Throttle Body Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	9A825	Speed control cable
2	9A758	Accelerator cable
3	-	Throttle position (TP) sensor electrical connector (part of 12B637)
4	W701632	Throttle body (TB) stud bolt
5	W701669	TB bolts (3 required)
6	9E926	TB assembly
7	9E936	TB gasket

Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES article.
Remove the air cleaner outlet pipe. For additional information, refer to INTAKE AIR DISTRIBUTION AND FILTERING article.
Remove the bolt and the snow shield.

Fig 2: Locating Bolt & Snow Shield
Courtesy of FORD MOTOR CO.
- To install, tighten to 10 Nm (89 lb-in).
Disconnect the throttle position (TP) sensor electrical connector.
Disconnect the accelerator cable, the speed control cable and the return spring.

Fig 3: Locating Accelerator Cable, Speed Control Cable & Return Spring
Courtesy of FORD MOTOR CO.
Remove the 3 bolts, the stud bolt and the throttle body (TB).
- Discard the TB gasket.
- To install, tighten to 10 Nm (89 lb-in).
If servicing the TB, remove the TP sensor. For additional information, refer to ELECTRONIC ENGINE CONTROLS article.

NOTE: Clean all TB sealing surfaces and install a new TB gasket.

To install, reverse the removal procedure.
