Clutch Disc and Pressure Plate: Installation

WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Lubricate the transmission input shaft pilot bearing with grease.

Fig 1: Locating Transmission Input Shaft Pilot Bearing
Courtesy of FORD MOTOR CO.

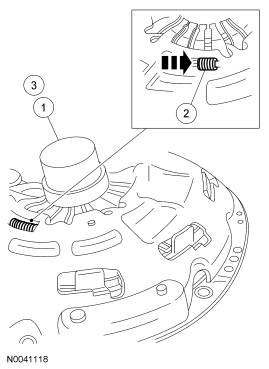

Adjust the clutch pressure plate.

Fig 2: Adjusting Clutch Pressure Plate
Courtesy of FORD MOTOR CO.
- Using a suitable press, press downward on the fingers until the adjusting ring moves freely.
- Rotate the adjusting ring counterclockwise to compress the tension springs. Hold the adjusting ring in this position.
- Release the pressure on the fingers. The adjusting ring will stay in the reset position.
Using the special tool, position the clutch disc on the flywheel.

Fig 3: Locating Clutch Disc On Flywheel
Courtesy of FORD MOTOR CO.

NOTE: If reusing the clutch pressure plate and flywheel, align the marks made during removal.

Fig 4: Locating Clutch Pressure Plate & Clutch Disc Bolts

Courtesy of FORD MOTOR CO.

Using the special tool, align the clutch disc and the clutch pressure plate. Install the bolts and tighten in a star pattern sequence.
- Tighten to 27 Nm (20 lb-ft).

NOTE: Before securing the transmission to the engine, connect the hydraulic line to the clutch slave cylinder.

Install the transmission.
- For additional information, refer to MANUAL TRANSAXLE/TRANSMISSION article.
