Glass, Frames and Mechanisms - Exploded View
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

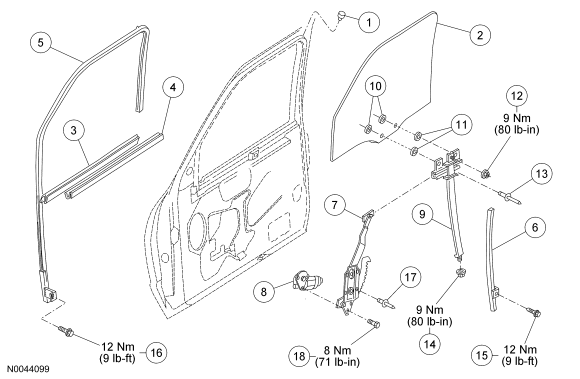

Fig 1: Exploded View Of Front Door Glass, Frames And Mechanisms Components With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | N805277-S | Rivet |
| 2 | 21410 | Door glass |
| 3 | 21452A | Door glass weatherstrip-outer |
| 4 | 21452B | Door glass weatherstrip-inner |
| 5 | 21546 | Door glass top run |
| 6 | 222A00 | Door glass channel |
| 7 | 23208 | Regulator assembly |
| 8 | 23394 | Motor assembly |
| 9 | 23288 | Center door glass run |
| 10 | 234A46 | Spacers (2 required) |
| 11 | 234A44 | Spacers (2 required) |
| 12 | N621907-S | Center door glass run nut |
| 13 | W525175-S | Window glass rivet (2 required) |
| 14 | N621907-S | Center door glass run nut |
| 15 | N6066676-S | Door glass channel bolt |
| 16 | N6066676-S | Door glass top run bolt |
| 17 | W525172-S | Window regulator rivet |
| 18 | N808650-S | Window regulator bolt |
- For additional information, refer to the procedures in this article.
