Solenoids - Shift, Torque Converter Clutch, Electronic Pressure Control: Notes
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada) |
MERCON® V |

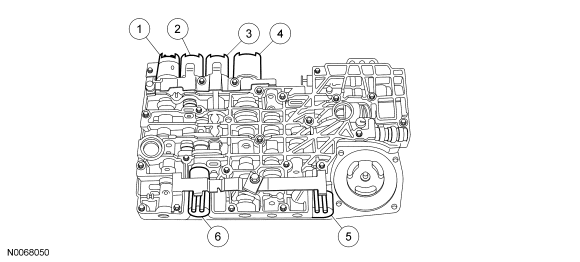

| Item | Part Number | Description |
|---|---|---|
| 1 | 7F037 | Torque converter clutch (TCC) |
| 2 | 7G484 | Shift solenoid (SSD) |
| 3 | 7G484 | Shift solenoid (SSB) |
| 4 | 7H144 | Electronic pressure control (EPC) |
| 5 | 7G484 | Shift solenoid (SSA) |
| 6 | 7G484 | Shift solenoid (SSC) |
