Front Brake and Coast Clutch Drum Assembly: Notes
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Compressor, Clutch Spring | 307-015 (T65L-77515-A) | |
| Sizer, Piston Seal | 307-353 |

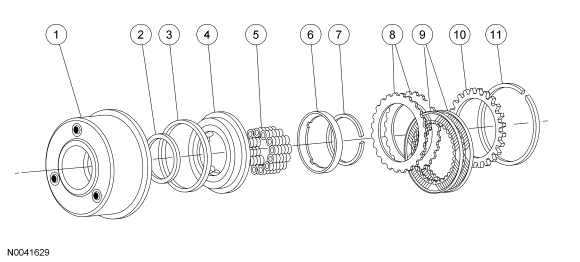

| Item | Part Number | Description |
|---|---|---|
| 1 | 7L669 | Front brake and coast clutch drum |
| 2 | 7D404 | Coast clutch piston inner seal ring |
| 3 | 7A548 | Coast clutch piston outer seal ring |
| 4 | 7A262 | Coast clutch piston |
| 5 | 7A480 | Coast clutch piston spring (20 required) |
| 6 | 7A527 | Coast clutch piston spring retainer |
| 7 | E860125 | Retaining ring |
| 8 | 7B442 | Coast clutch external plates - steel (2 required) |
| 9 | 7B164 | Coast clutch internal plates - friction (2 required) |
| 10 | 7B066 | Coast clutch pressure plate |
| 11 | E860126/129 | Retaining ring (select fit) |
