Transmission Connector Layouts

WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Transmission Vehicle Harness Connector

Pin Number	Circuit	Circuit Function
1	-	Torque converter clutch (TCC) power
2	-	Turbine shaft speed (TSS) sensor signal
3	-	Sensor signal return
4	-	Transmission fluid temperature (TFT) sensor
5	-	Torque converter clutch (TCC) solenoid
6	-	Not used
7	-	Shift solenoid (SSC)
8	-	Sensor signal return
9	-	Shift solenoid (SSD)
10	-	Shift solenoid power
11	-	Electronic pressure control (EPC) power
12	-	EPC solenoid
13	-	Not used
14	-	Shift solenoid (SSB)
15	-	Not used
16	-	Shift solenoid (SSA)

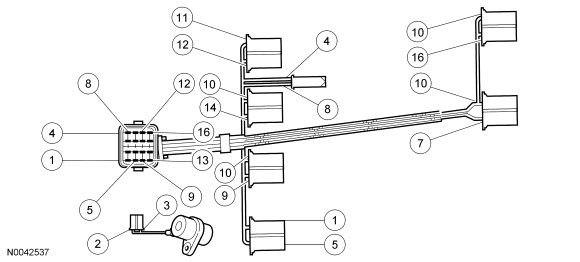

Fig 2: Transmission Internal Harness Connector

Pin Number	Circuit	Circuit Function
1	Black	Torque converter clutch (TCC) power
2	Red	Turbine shaft speed (TSS) sensor signal
3	White	Sensor signal return (for TSS)
4	Red	Transmission fluid temperature (TFT) sensor
5	Purple	TCC solenoid
6	-	Not used
7	Yellow	Shift solenoid (SSC)
8	Red	Sensor signal return (for TFT)
9	Orange	Shift solenoid (SSD)
10	White	Shift solenoid power
11	Green	Electronic pressure control (EPC) power
12	Blue	EPC solenoid
13	-	Not used
14	Brown	Shift solenoid (SSB)
15	-	Not used
16	Gray	Shift solenoid (SSA)

Fig 3: Digital Transmission Range (TR) Sensor Connector

Courtesy of FORD MOTOR CO.

Pin Number	Circuit	Circuit Function
1	-	Not used
2	-	Signal return
3	-	TR3A
4	-	TR1
5	-	TR2
6	-	TR4
7	-	Ground
8	-	Neutral sense
9	-	Fused power feed
10	-	Starter control
11	-	Back up
12	-	Starter to starter interrupt relay

Fig 4: Output Shaft Speed (OSS) Sensor Connector

Courtesy of FORD MOTOR CO.

Pin Number	Circuit	Circuit Function
1	-	Output shaft speed (OSS) sensor
2	-	Signal return

Fig 5: Intermediate Shaft Speed Sensor Connector

Courtesy of FORD MOTOR CO.

DIGITAL TRANSMISSION RANGE (TR) SENSOR DIAGNOSIS CHART

Selector Position	PID: TR	TR4	TR3	TR2	TR1	TR3_V PCM pin 27 to sigrtn
PARK	P/N	Closed	Closed	Closed	Closed	0.0 volts
In Between	REV	Closed	Open	Closed	Closed	1.3 - 1.8 volts
REVERSE	REV	Open	Open	Closed	Closed	1.3 - 1.8 volts
In Between	REV	Closed	Open	Closed	Closed	1.3 - 1.8 volts
NEUTRAL	NTRL	Closed	Open	Open	Closed	1.3 - 1.8 volts
In Between	O/D^a	Open	Open	Open	Closed	1.3 - 1.8 volts
OVERDRIVE	O/D^a	Open	Open	Open	Open	1.3 - 1.8 volts
In Between	Man 2	Open	Closed	Open	Open	0.0 volts
Manual 2	Man 2	Open	Closed	Closed	Open	0.0 volts
In Between	Man 2	Open	Closed	Open	Open	0.0 volts
Manual 1	Man 1	Closed	Closed	Open	Open	0.0 volts
TR3_V is the voltage at the PCM pin 27 (TR3A circuit) to signal return. "In Between" reading could be caused by a selector lever cable or digital transmission range (TR) sensor misaligned or a digital TR sensor circuit failure of TR1, TR2, TR3A or TR4. Voltages for TR1, TR2, TR4: 0 = 0.0 volts. 1 = 9.0 - 14.0 volts. Voltage for TR3A: 0 = 0.0 volts. 1 = 1.3 - 1.8 volts. Wiggle Test Information for Open/Shorts TR4, TR3, TR2 and TR1 are all closed in PARK. PARK is a good position to check for intermittent open circuits. TR4, TR3, TR2 and TR1 are all open in OVERDRIVE, so OVERDRIVE is a good position to check for shorts to ground. To determine the shorted components while observing the TR PIDs, unplug the TR and see if the short goes away. If the short is still present, unplug the transmission harness and see if the short goes away. If the short is still present then the short is in the PCM or vehicle harness. Remove the suspect circuit(s) wire terminal from the PCM connector. If the short is still present, then the PCM has an internal failure, otherwise the failure is in the vehicle harness.

Pin Number	Circuit	Circuit Function
1	-	Intermediate shaft speed sensor
2	-	Signal return

^a Will read "Drive" if O/D is canceled.
