Air Conditioning (A/C) Compressor - 4.0L: Notes
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| PAG Refrigerant Compressor Oil (R-134a Systems) YN-12-D |
WSH-M1C231-B |

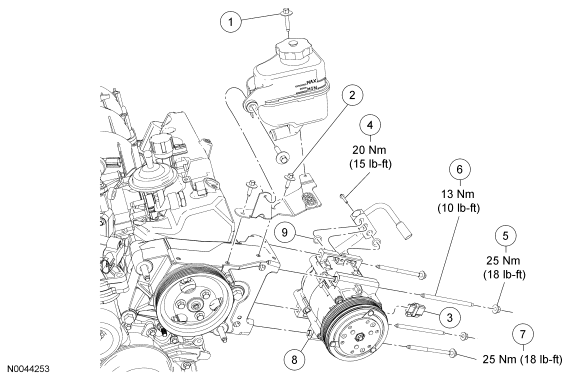

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Power steering reservoir bolt (2 required) |
| 2 | - | Power steering reservoir bracket bolt (2 required) |
| 3 | 14A280 | Clutch field coil electrical connector |
| 4 | W704692 | A/C compressor manifold bolt |
| 5 | N621939 | A/C compressor nut (2 required) |
| 6 | W704795 | A/C compressor stud (2 required) |
| 7 | N811329 | A/C compressor bolt (2 required) |
| 8 | 19703 | A/C compressor |
| 9 | 19E889 | O-ring seal (2 required) |
