Air Conditioning (A/C) Compressor - 3.0L: Notes

WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Material

Item	Specification
PAG Refrigerant Compressor Oil (R-134a Systems) YN-12-D	WSH-M1C231-B

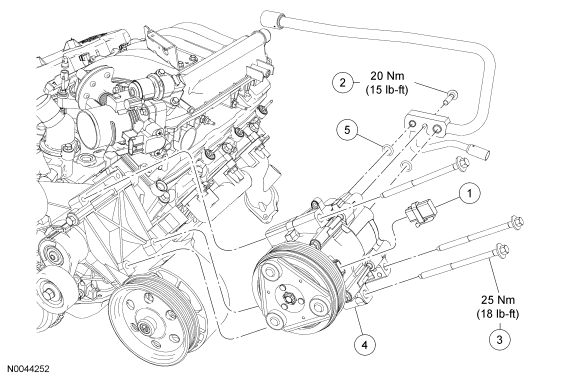

Fig 1: A/C Compressor With Torque Specifications (3.0L)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14A280	Clutch field coil electrical connector
2	W704692	A/C compressor manifold bolt
3	N811329	A/C compressor bolt (3 required)
4	19703	A/C compressor
5	19E889	O-ring seal (2 required)
