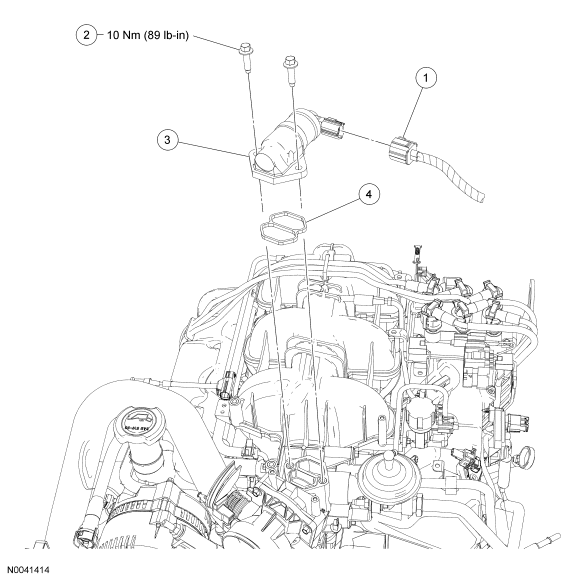

Idle Air Control (IAC) Valve - 4.0L: Notes
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
- |
Idle air control (IAC) valve electrical connector (part of 12B637) |
| 2 |
W500214 |
IAC valve bolt (2 required) |
| 3 |
9F715 |
IAC valve |
| 4 |
- |
IAC valve gasket |
