Crankshaft Position (CKP) Sensor - 2.3L: Notes
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration |
Tool Name |
Tool Number |
|
|
Timing Peg, Crankshaft |
303-507 |
Courtesy of FORD MOTOR CO.

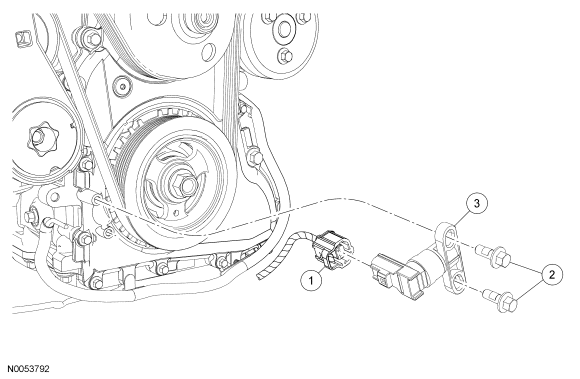

| Item |
Part Number |
Description |
| 1 |
- |
Crankshaft position (CKP) sensor electrical connector (part of 12B637) |
| 2 |
W701219 |
CKP sensor bolt (2 required) |
| 3 |
6C315 |
CKP sensor |
