Thermostat - 3.0L (2V): Notes
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

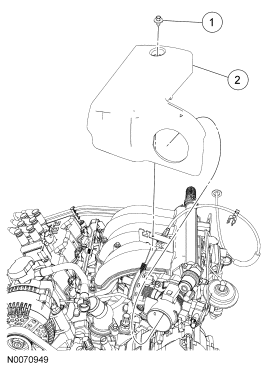

Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
N800312 |
Throttle body (TB) cover bolt |
| 2 |
9E766 |
TB cover |

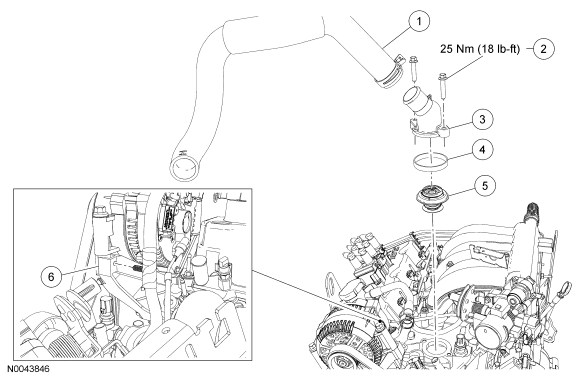

Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
8260 |
Upper radiator hose |
| 2 |
N605909 |
Thermostat outlet housing bolt (2 required) |
| 3 |
8592 |
Thermostat outlet housing |
| 4 |
8255 |
Thermostat outlet housing gasket |
| 5 |
8575 |
Thermostat |
| 6 |
13A506 |
Alternator wiring pin-type retainer (part of 14A280) |
