Radiator and Cooling Fan - Exploded View, 3.0L and 4.0L

WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

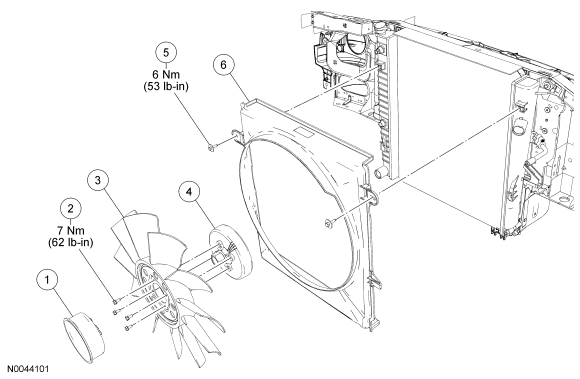

Fig 1: Exploded View Of Radiator & Cooling Fan 3.0L & 4.0L With Torque Specifications (1 Of 2)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	8509	Coolant pump pulley
2	W602527	Cooling fan-to-cooling fan clutch bolt (4 required)
3	8600	Cooling fan
4	8A616	Cooling fan clutch
5	N811864	Cooling fan shroud bolt (2 required)
6	8146	Cooling fan shroud

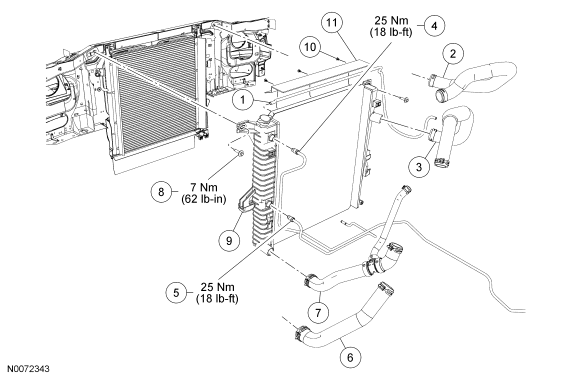

Fig 2: Exploded View Of Radiator & Cooling Fan 3.0L & 4.0L With Torque Specifications (2 Of 2)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	8075	Radiator overflow hose
2	8260	Upper radiator hose (4.0L SOHC engines)
3	8260	Upper radiator hose (3.0L engines)
4	7A031	Transmission cooler outlet hose
5	7C410	Transmission cooler inlet hose
6	8286	Lower radiator hose (4.0L SOHC engines)
7	8286	Lower radiator hose (3.0L engines)
8	N811605	Radiator-to-radiator support bolt (2 required)
9	8005	Radiator
10	N806799	Push pin
11	19T555	Seal

For additional information, refer to the procedures in this article.
