Coolant Pump - 4.0L SOHC: Notes
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

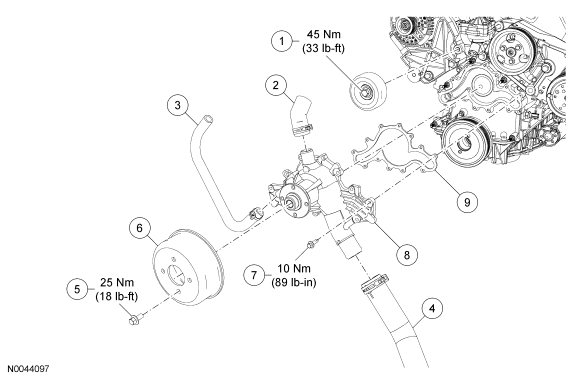

| Item | Part Number | Description |
|---|---|---|
| 1 | 6C348 | Accessory drive belt idler pulley |
| 2 | 8548 | Coolant bypass hose |
| 3 | 18C266 | Heater hose |
| 4 | 8286 | Lower radiator hose |
| 5 | N605784 | Coolant pump pulley bolt (4 required) |
| 6 | 8509 | Coolant pump pulley |
| 7 | W500014 | Coolant pump bolts (12 required) |
| 8 | 8501 | Coolant pump |
| 9 | 8507 | Coolant pump gasket |
