Coolant Pump - 3.0L: Notes
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

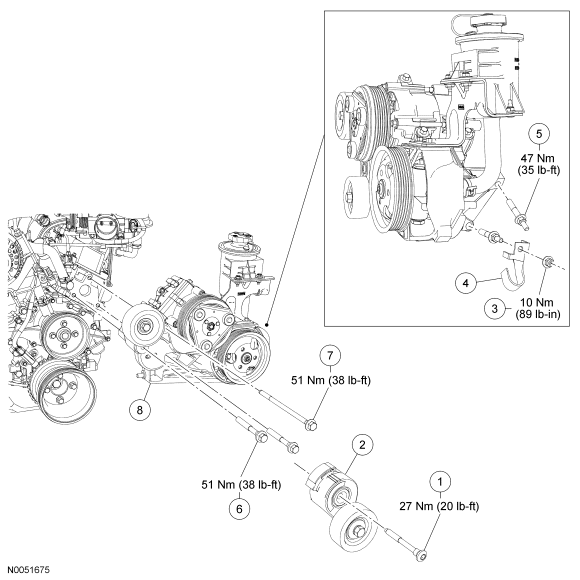

Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
- |
Accessory drive belt tensioner bolt (part of 6B209) |
| 2 |
6B209 |
Accessory drive belt tensioner |
| 3 |
W620481 |
Battery cable bracket nut |
| 4 |
7B085 |
Battery cable bracket (part of 14A280) |
| 5 |
N807123 |
A/C compressor mounting stud bolt (2 required) |
| 6 |
N606068 |
A/C compressor mounting bolt (2 required) |
| 7 |
N807124 |
A/C compressor mounting bolt |
| 8 |
19E708 |
A/C compressor mounting bracket |

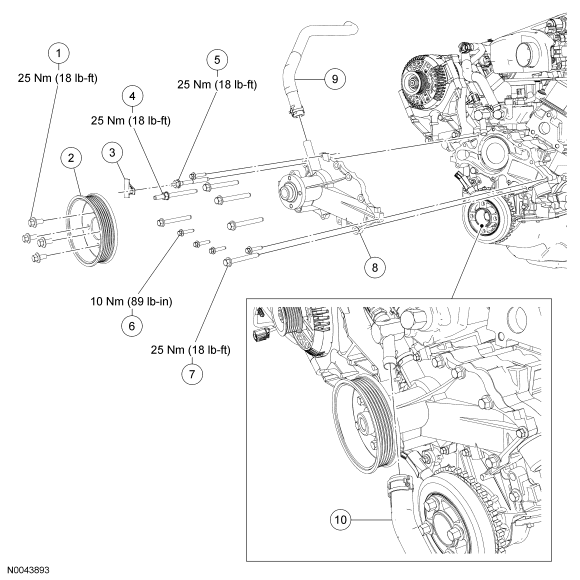

Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
N605784 |
Coolant pump pulley bolt |
| 2 |
8A528 |
Coolant pump pulley |
| 3 |
13A506 |
Wiring harness retainer (part of 12B637) |
| 4 |
W807515 |
Coolant pump stud bolt |
| 5 |
W708249 |
Coolant pump stud bolt |
| 6 |
N804576 |
Coolant pump bolt (5 required) |
| 7 |
N811375 |
Coolant pump bolt (5 required) |
| 8 |
8501 |
Coolant pump |
| 9 |
18472 |
Heater hose |
| 10 |
- |
Bypass hose (part of 8B273) |
