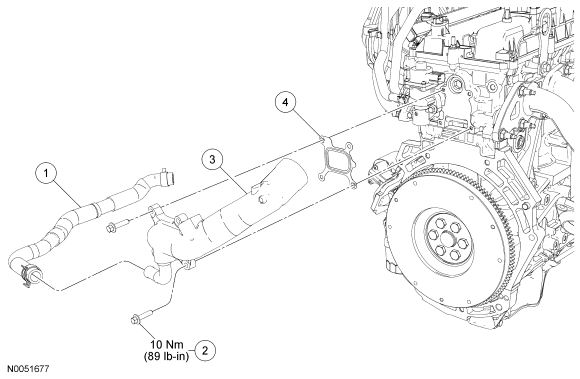

Coolant Outlet Pipe - 2.3L, Rear: Notes
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
8A582 |
Coolant bypass hose |
| 2 |
W500015 |
Rear coolant outlet pipe bolt (4 required) |
| 3 |
8K556 |
Rear coolant outlet pipe |
| 4 |
8255 |
Rear coolant outlet pipe gasket |
