Coolant Outlet Pipe - 2.3L, Front: Notes

WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

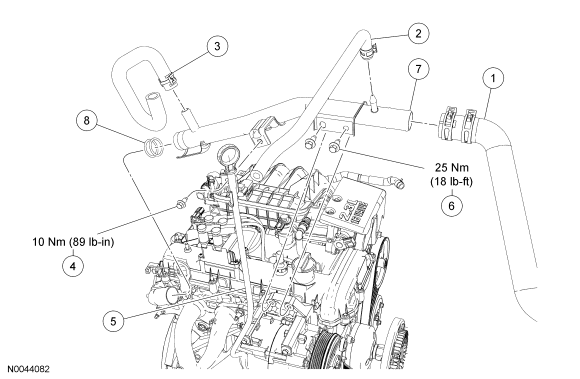

Fig 1: Exploded View Of Coolant Outlet Pipe 2.3L Front With Torque Specifications
GF0009508Courtesy of FORD MOTOR CO.
Material

Item Specification
Motorcraft Premium Gold Engine Coolant with Bittering Agent (US only)
VC-7-B (US); CVC-7-A (Canada); or equivalent (yellow color)
WSS-M97B51-A1
