Coolant Bypass Hose - 2.3L: Notes
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

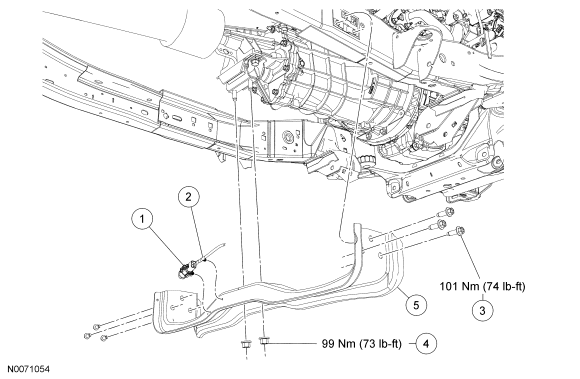

Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
14A163 |
Electrical connector retainer (part of 14405) |
| 2 |
13A506 |
Wiring harness retainer (part of 14A464) |
| 3 |
N802594 |
Transmission crossmember bolt (6 required) |
| 4 |
N621945 |
Transmission mount nut (2 required) |
| 5 |
1132 |
Transmission crossmember |

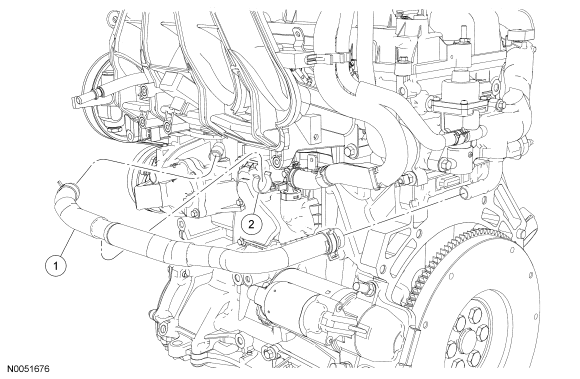

Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
8A582 |
Coolant bypass hose |
| 2 |
8B365 |
Coolant bypass hose routing clip |
