Starter Motor - 4.0L: Notes
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

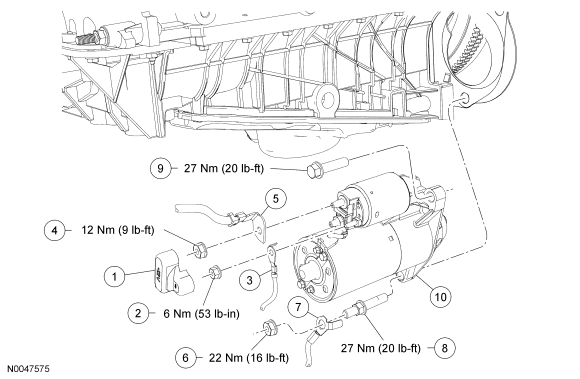

| Item | Part Number | Description |
|---|---|---|
| 1 | 14488 | Starter solenoid terminal cover |
| 2 | N805320 | Starter motor solenoid wire nut |
| 3 | - | Starter motor solenoid wire (part of 14A280) |
| 4 | W706414 | Starter motor solenoid battery cable nut |
| 5 | - | Starter motor solenoid battery cable (part of 14A280) |
| 6 | N605789 | Ground cable nut |
| 7 | - | Ground cable (part of 14A280) |
| 8 | W500320 | Starter motor stud bolt |
| 9 | W710601 | Starter motor bolt |
| 10 | 11000 | Starter motor |
