Wheel and Tire: Notes

WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Material

Item	Specification
High Temperature Nickel Anti-Seize Lubricant XL-2 (US); CXG-2-B (Canada)	ESE-M12A4-A

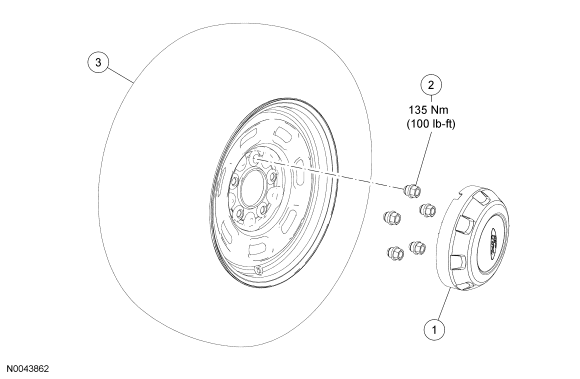

Fig 1: Exploded View Of Wheel & Tire With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	1A096	Center cap
2	1012	Wheel nut (5 required)
3	-	Wheel and tire assembly
