Removal And Installation: Spring: Notes
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| C-Frame and Screw Assembly | 211-023 (T74P-3044-A1) | |
| Coil Spring Compressor | 204-D001 (D78P-5310-A) or Equivalent |

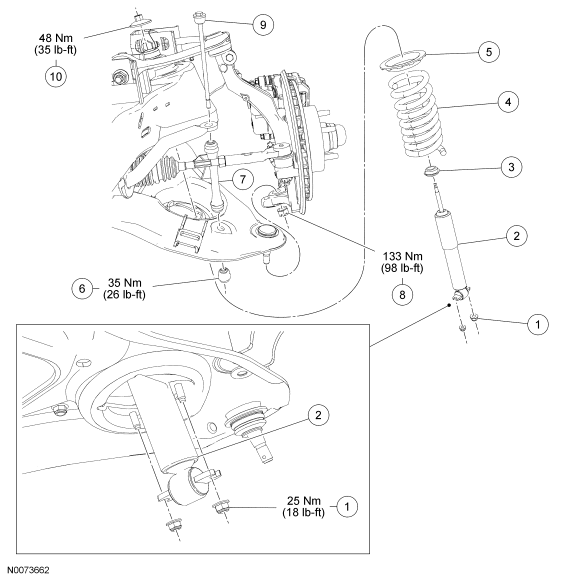

| Item | Part Number | Description |
|---|---|---|
| 1 | W520102 | Lower shock nut (2 required) |
| 2 | 18124 | Shock absorber |
| 3 | 18198 | Shock absorber insulator |
| 4 | 5310 | Coil spring |
| 5 | 5415 | Coil spring insulator |
| 6 | 5K483 | Stabilizer bar link assembly |
| 7 | 5C491 | Stabilizer bar link and grommet |
| 8 | N808039 | Lower ball joint nut |
| 9 | 5495 | Stabilizer bar link stud and grommet |
| 10 | 18B025 | Shock absorber rod nut |
