Lower Arm - Torsion Bar Suspension: Notes
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Installer/Remover C-Frame and Screw | 211-023 (T74P-3044-A1) |

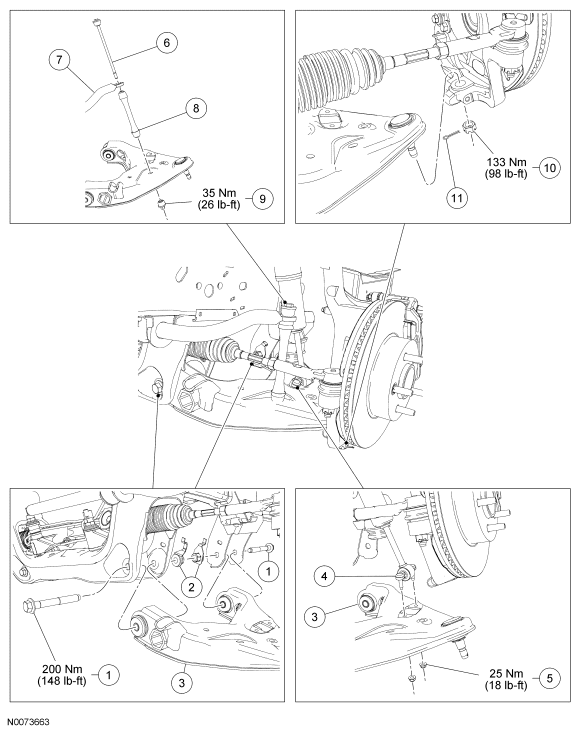

| Item | Part Number | Description |
|---|---|---|
| 1 | N808264 | Lower arm bolts (2 required) |
| 2 | N808166 | Lower arm flag nut, rearward |
| 2 | N811577 | Lower arm flag nut, forward |
| 3 | 3042 RH/ 3051 LH | Lower arm |
| 4 | 18198 | Shock absorber |
| 5 | W520102 | Shock absorber lower nut (2 required) |
| 6 | 5495 | Stabilizer bar link stud and grommet (part of 5K483) |
| 7 | 5482 | Stabilizer bar |
| 8 | 5K483 | Stabilizer bar link assembly |
| 9 | 5C491 | Stabilizer bar link nut and grommet (part of 5K483) |
| 10 | N808039 | Lower ball joint nut |
| 11 | W525287 | Lower ball joint cotter pin |
