Steering Gear - Rear Wheel Drive (RWD): Notes
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Remover, Tie-Rod End | 211-001 (TOOL-3290-D) or equivalent |

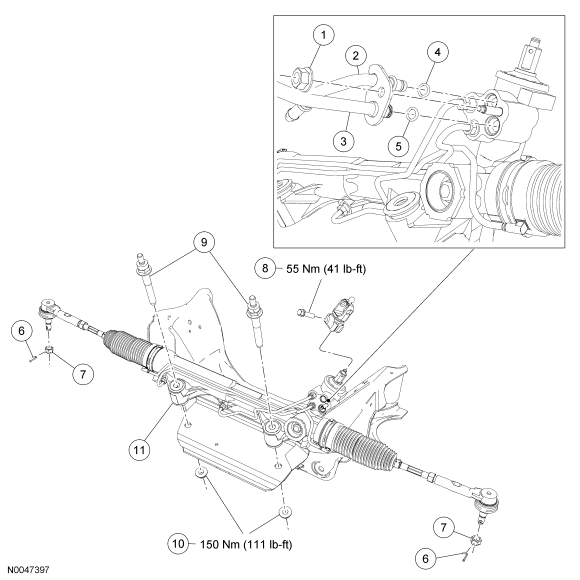

| Item | Part Number | Description |
|---|---|---|
| 1 | W520413 | Power steering line clamp plate nut |
| 2 | 3A713 | Power steering return line |
| 3 | 3A719 | Power steering pressure line |
| 4 | N803256 | O-ring seal |
| 5 | N803257 | O-ring seal |
| 6 | N642569 | Cotter pins (2 required) |
| 7 | N800895 | Outer tie-rod end nuts (2 required) |
| 8 | N803942 | Lower steering column shaft bolt |
| 9 | N811762 | Steering gear mounting studs (2 required) |
| 10 | N808265 | Steering gear nuts (2 required) |
| 11 | 3504 | Steering gear |
