Power Steering Pump - 4.0L: Notes

WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools

Illustration	Tool Name	Tool Number
	Installer Set, Teflon® Seal	211-D027 (D90P-3517-A) or equivalent

Material

Item	Specification
MERCON® Multi-Purpose Automatic Transmission Fluid XT-2-QDX (US); XT-2-LM12 (Canada)	MERCON®

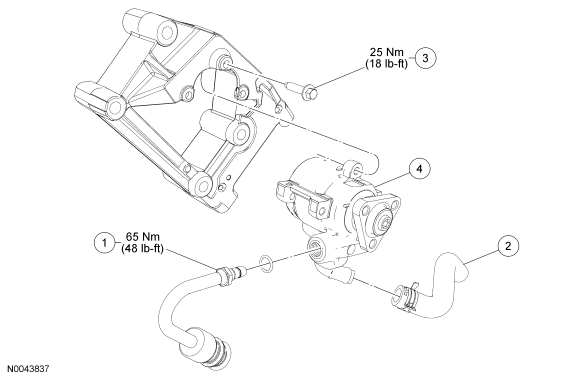

Fig 1: Exploded View Of Power Steering Pump - 4.0L Engine With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	3A719	Power steering pressure line
2	3659	Power steering supply hose
3	W700839	Power steering pump bolts (3 required)
4	3A674	Power steering pump
