Power Steering Pump - 3.0L: Notes
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Installer Set, Teflon® Seal | 211-D027 (D90P-3517-A) or equivalent |
Material
| Item | Specification |
|---|---|
| MERCON® Multi-Purpose Automatic Transmission Fluid XT-2-QDX (US); XT-2-LM12 (Canada) |
MERCON® |

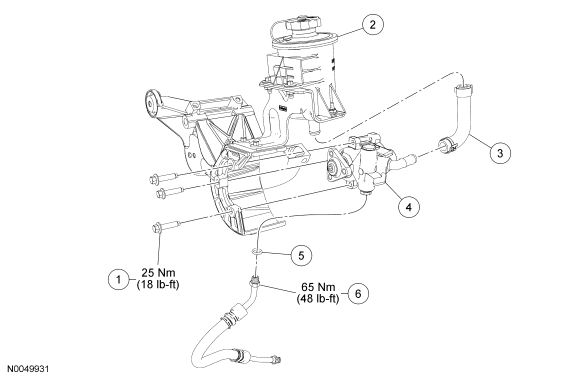

| Item | Part Number | Description |
|---|---|---|
| 1 | N605784 | Power steering pump bolts (3 required) |
| 2 | 3R700 | Power steering reservoir |
| 3 | CS7617 | Power steering pump supply hose |
| 4 | 3A733 | Power steering pump |
| 5 | N803257 | Power steering pressure line Teflon® O-ring seal |
| 6 | 3A719 | Power steering pressure line |
