Power Steering Pump - 2.3L: Notes
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Installer Set, Teflon® Seal | 211-D027 (D90P-3517-A) or equivalent |
Material
| Item | Specification |
|---|---|
| MERCON® Multi-Purpose Automatic Transmission Fluid XT-2-QDX (US); XT-2-LM12 (Canada) |
MERCON® |

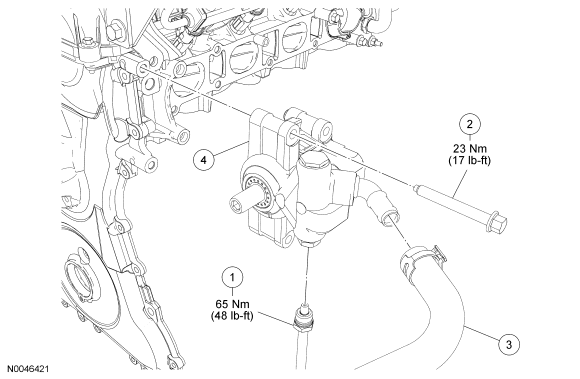

| Item | Part Number | Description |
|---|---|---|
| 1 | 3A719 | Power steering pressure line |
| 2 | W705952 | Power steering pump bolts (4 required) |
| 3 | C56697 | Power steering supply hose |
| 4 | 3A674 | Power steering pump |
