Power Steering Fluid Reservoir - 2.3L and 4.0L: Notes

WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Material

Item	Specification
MERCON® Multi-Purpose Automatic Transmission Fluid XT-2-QDX (US); XT-2-LM12 (Canada)	MERCON®

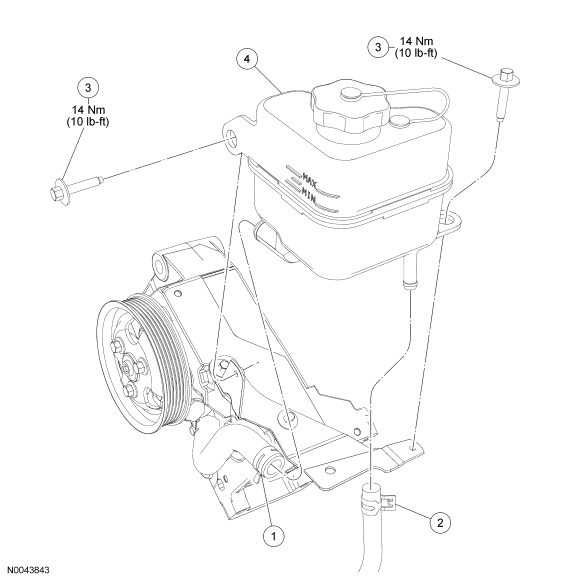

Fig 1: Exploded View Of Power Steering Fluid Reservoir - 2.3L Engine With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	3A713	Power steering return hose
2	3659	Power steering supply hose
3	W503924	Power steering fluid reservoir bolts (3 required)
4	3R700	Power steering fluid reservoir

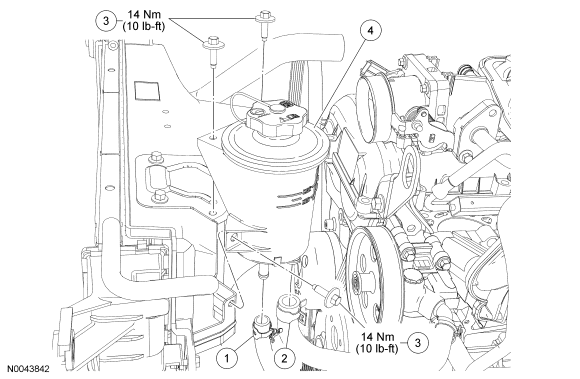

Fig 2: Exploded View Of Power Steering Fluid Reservoir - 4.0L Engine With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	3659	Power steering supply hose
2	3A005	Power steering return hose
3	N606678	Power steering fluid reservoir bolts (2 required)
4	3R700	Power steering fluid reservoir
