Power Steering Fluid Cooler: Notes
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| MERCON® Multi-Purpose Automatic Transmission Fluid XT-2-QDX (US); XT-2-LM12 (Canada) |
MERCON® |

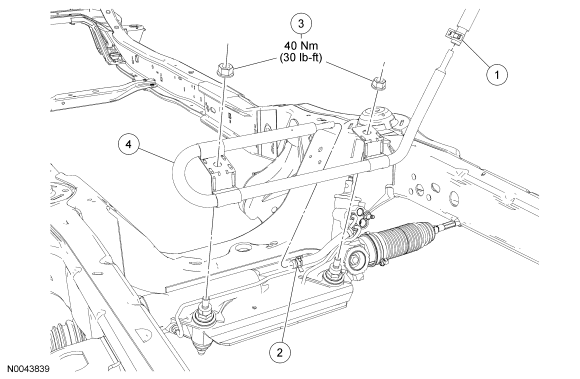

| Item | Part Number | Description |
|---|---|---|
| 1 | 3A005 | Power steering fluid reservoir-to-power steering fluid cooler hose |
| 2 | - | Power steering fluid cooler-to-steering gear hose |
| 3 | N800169 | Power steering fluid cooler nuts (2 required) |
| 4 | 3F780 | Power steering fluid cooler |
