Transfer Case Shift Motor: Notes
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item |
Specification |
Ultra Silicone Sealant
TA-29 |
- |
Courtesy of FORD MOTOR CO.

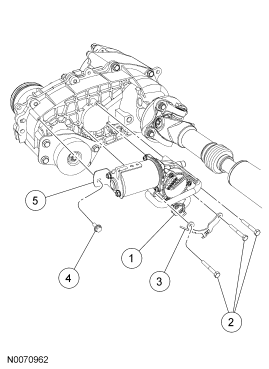

| Item |
Part Number |
Description |
| 1 |
14A464 |
Transfer case shift motor electrical connector |
| 2 |
N800670-S |
Transfer case shift motor bolts (3 required) |
| 3 |
7K470 |
J-clip |
| 4 |
7A443 |
Transfer case shift motor bracket bolt |
| 5 |
7G360 |
Transfer case shift motor |
